⚡9th Grade Chapter 6 Electric Current⚡:

Electricity is everywhere from your phone charger to the lights in your classroom. In Chapter 6, we dive into the world of electric current, learning how it flows, how we control it, and why it matters. We will also briefly explore ohm’s law. Let’s break it down!

⚡ 6.1 Electric Current: What Is It, Really?

Electric current is the flow of electric charge, usually carried by electrons moving through a wire. Think of it like water flowing through a pipe but instead of water, it's a stream of tiny particles called electrons.

For electricity to flow, we need a complete path called a circuit.

• The higher the current, the more electric charge moves per second.

• The current is measured in amperes (A).

🔋 Current Flow in a Circuit

In a simple circuit powered by a battery:

• Electrons actually flow from the negative terminal to the positive terminal this is called electron flow.

• However, in most textbooks and diagrams, we use conventional current, which is shown flowing from the positive terminal to the negative terminal. This is just a historical choice.

💡 Remember:

• Electron flow = negative ➡️ positive

• Conventional current = positive ➡️ negative (used in diagrams)

📏 How Is Current Measured?

An electric current is a measure of the rate of flow of electric charge through a conductor in a circuit.

• The greater the number of charges flowing, the stronger the current.

• We measure electric current using a device called an ammeter.

• The standard (S.I.) unit for electric current is the ampere or amps (A).

Electric current is the flow of electric charge (electrons) through a conductor, like a copper wire.

• Symbol: I (capital i)
• Unit: Ampere (A)

📐 Formula:

I = Q / t

Where:

• I = current (A)
• Q = charge (Coulombs)
• t = time (seconds)

💡 Example:

If 10 coulombs of charge pass through a wire in 2 seconds, what’s the current?

I = 10 C / 2 s = 5 A

That means a current of 5 amps is flowing.

🔄 6.2 Circuit Diagrams: The Blueprint of Electricity

A circuit diagram is like a map for an electrical circuit. It uses symbols to show the components and how they are connected.

Learning to read and draw these diagrams helps you build and understand real-life electrical systems just like engineers do!

💡 Try this: Practice drawing a simple circuit with a battery, switch, and bulb. Can you show when it’s open vs. closed?

A simple circuit consists of a cell, wires and usually a bulb.

The circuit diagram represents the actual circuit on the right.

💡 Quick Challenge:

Draw a simple circuit diagram that includes:

• 1 battery

• 1 switch

• 2 bulbs in series

Now add labels for the current path and components.

⚡ Why the Diagram Shows Current Flowing from Positive to Negative:

In the image you shared (Figure 6.3) below, the current is shown flowing from the positive terminal of the battery to the negative terminal. This is called:

Conventional current direction

This method was established before scientists knew about electrons. Early scientists assumed electricity flowed from the positive side of a battery to the negative side. By the time electron flow was discovered, conventional current had already been widely adopted in textbooks, engineering, and circuit diagrams and it stayed that way for consistency.

⚛️ What Really Happens Electron Flow:

In reality, electrons carry the charge, and electrons are negatively charged. So:

Electrons actually flow from the negative terminal to the positive terminal.

This is called electron flow.

---

🔗 6.3 Series and Parallel Circuits: What’s the Difference?

Series Circuit:

There are two main types of circuits you’ll see in science and everyday life: series circuits and parallel circuits. Each has a different way of connecting components and affects how electricity flows and how bright your bulbs shine.

🔁 Series Circuit

(Figure 6.3) The image shows a series circuit and the diagram shows the the direction of current flow in a series circuit.

In a series circuit, all components are connected one after another in a single loop.

• The current flows through every component without branching.

• Current is the same at every point in a series circuit.

• Voltage is shared between the components.

• If one part (like a bulb) stops working, the whole circuit stops.

💡 Example:
Fairy lights wired in series if one bulb goes out, the entire string turns off.

⚠️ Adding More Components in Series

When more components are added:

• Total resistance increases

• Current decreases

• Bulbs may get dimmer

Why? Because the same battery now has to push the same amount of energy through more resistance.

🧪 How to Use an Ammeter in Series

The ammeter will show how much current is flowing in the circuit.

• Connect the ammeter in series, like any other component.

• Match polarity:

  • Negative end of ammeter ➡️ negative terminal of the battery

  • Positive end ➡️ positive terminal

🔁 Series Circuit:

• One path for current
• Current is the same through all components
• Voltage is divided between components

📐 Formulas:

V_total = V₁ + V₂ + V₃ + ...
I_total = I₁ = I₂ = ...

💡 Example:

If a 6V battery is connected to 2 bulbs in series and each bulb gets 3V, the voltage is shared:
V_total = 3V + 3V = 6V

🔀 Parallel Circuit

In a parallel circuit, components are connected across multiple branches.

• Current has more than one path to travel.

• If one component breaks, others can still work.

• Voltage is the same across each branch.

• Current is divided between the branches.

💡 Example:
Home wiring turn off one light, and everything else still works!

🔬 Current Flow in Parallel Circuits

Let’s say a parallel circuit has two branches:

Current reaches point A and splits:

Some flows to point B

Some flows to point C

The currents combine again at point D

Current at A = Current at B + Current at C

Current at D = Current at B + Current at C

Current at A = Current at D

So, the total current equals the sum of the currents in each branch.

💡 Why Are Bulbs Brighter in Parallel?

• Parallel circuits have less total resistance

• Current doesn’t have to pass through all components it chooses the easier path

• Devices in each branch get full voltage, so bulbs shine brighter

---

🔀 Parallel Circuit:

• Multiple paths for current
• Voltage is the same across each branch
• Current is split between branches

📐 Formulas:

V_total = V₁ = V₂ = ...
I_total = I₁ + I₂ + I₃ + ...

💡 Example:

If 3A flows into a parallel circuit and splits equally between 2 branches:
I₁ = 1.5A, I₂ = 1.5A
I_total = 3A

---

🔌 6.4 Voltage: The Push Behind the Current

Voltage is the electrical potential difference between two points in a circuit. You can think of it as the "push" or pressure that makes electric charges move. The more voltage there is, the stronger the push for the electric current to flow.

• Measured in volts (V).

• Think of voltage like the pressure that pushes water through pipes.

💡 Example: A phone charger usually supplies about 5 volts just enough to charge your phone safely.

When identical cells are connected in series, their voltages add together, increasing the total voltage. However, when identical cells are connected in parallel, the total voltage remains the same as that of a single cell.

⚙️ How Do We Measure Voltage?

To measure voltage, we use a device called a voltmeter.

The unit of voltage is the volt (V).

A voltmeter must be connected in parallel with the component you're measuring.

Positive end of the voltmeter ➡️ connects to the positive terminal of the power source.

Negative end of the voltmeter ➡️ connects to the negative terminal.

🔁 Voltage in a Series Circuit

• Voltage is shared between the components.
• Each component gets less voltage than the battery or cell supplies.
• It is more difficult for charges to move through components connected in series because the total resistance is higher.

V_total = V₁ + V₂ + V₃   (Series)

💡 Example:
If a battery provides 9V, and two bulbs are connected in series, each bulb might receive 4.5V.

🔀 Voltage in a Parallel Circuit

• The voltage across each component is the same as the total voltage of the battery or power source.
• It is easier for charges to move, because the resistance is lower.

V_total = V₁ = V₂ = V₃   (Parallel)

💡 Example:
If a 6V battery is connected to two bulbs in parallel, each bulb receives 6V.

🔋 Extra Tip: Series vs. Parallel Battery Connections

When identical cells are connected:

• In series:
  The voltages add up.
  📌 Example: Three 1.5V cells in series = 4.5V total.
• In parallel:
  The total voltage is the same as one cell, but battery life increases.
  📌 Example: Three 1.5V cells in parallel = 1.5V total, but they last longer.

---

⚙️ 6.5 Resistance: What Slows Current Down?

Resistance is a measure of how much a material opposes the flow of electric current in a circuit. It’s like friction for electrons slowing them down as they move through a conductor. Measured in ohms (Ω). Resistance can come from the wire, a resistor, or even a device like a light bulb.

Let’s go back to our water pipe example:

• Voltage (V) is like water pressure it pushes water (or charge) through the pipe.

• Current (I) is like the flow rate how much water flows per second.

• Resistance (R) is like the narrowness or blockage in the pipe it makes it harder for water to flow.

💡 So what happens if you make the pipe narrower (increase resistance)?

• The flow of water (current) decreases even if the pressure stays the same.

• To maintain the same flow rate, you’d need to increase the pressure (voltage).

  Note: 💡 In electricity, resistance doesn't cause a pressure buildup like in plumbing it limits how much flow (current) gets through for a given push (voltage).

  Lets imagine it another way:

  💧🔌 Imagine you have a water hose and you place a nozzle on the end.

  In the hose:

  • Water pressure = voltage

  • Water flow = current

  • Nozzle or narrow section = resistance

  When you squeeze the nozzle:

  • The water jets out faster yes, the speed increases.

  • But the amount of water coming out per second (flow rate) may actually decrease, unless the pressure behind it also increases.

  • The pressure inside the hose (upstream of the nozzle) rises because water is building up behind the narrow opening.

  ⚡ In the Electrical Circuit:

  • The battery provides voltage (push).

  • Current is the flow of electrons (like flow of water).

  • Resistance is like the narrow nozzle.

  When resistance increases:

  • If voltage stays the same, current decreases (Ohm’s Law: V = IR).

  • If you want to keep the current the same, you must increase the voltage.

  ✅ So what's the key difference?

  In water:

  • You're physically restricting the exit, so pressure builds up before the nozzle.

  In electricity:

  • The battery is fixed it provides a constant voltage unless changed.

  • The “restriction” (resistor) doesn’t build up pressure it limits flow based on Ohm’s Law.

💡 Example: A dimmer switch works by increasing the resistance in a light circuit, which lowers the brightness.

⚙️ Comparing the Electrical Resistance of Conductive Materials

Earlier in Chapters 2 and 3, we explored the building blocks of matter the elements. These elements combine to form different materials, including metals that power our homes, cars, and cities. But have you ever wondered why some elements, like gold, are more valuable than others? One reason is their unique electrical properties like resistance.

The table below shows the electrical resistivity of various conductive materials. Lower resistivity means the material allows electric current to flow more easily making it a better conductor.

Material	Resistivity (Ω·m × 10⁻⁸)
Silver	1.59
Copper	1.68
Gold	2.44
Aluminum	2.82
Tungsten	5.60
Iron	9.71
Nichrome	100.0

🧠 Which Is the Best Conductor?

Silver has the lowest resistivity, making it the best conductor of electricity. It allows electric charges to move through it with the least resistance.

However... silver is expensive and easily tarnishes, so it is not commonly used for wiring in homes or electronics.

💡 What Do We Use Instead?

Copper is almost as good a conductor as silver, but it’s cheaper and more durable. That’s why it’s the most commonly used metal for electrical wiring.

Aluminum is also widely used, especially for power lines, because it is lightweight and relatively cheap, though it has slightly higher resistance than copper.

Nichrome has very high resistance and is used in things like toasters and hair dryers not to carry electricity easily, but to resist it and produce heat!

📐 Ohm’s Law: The Golden Rule

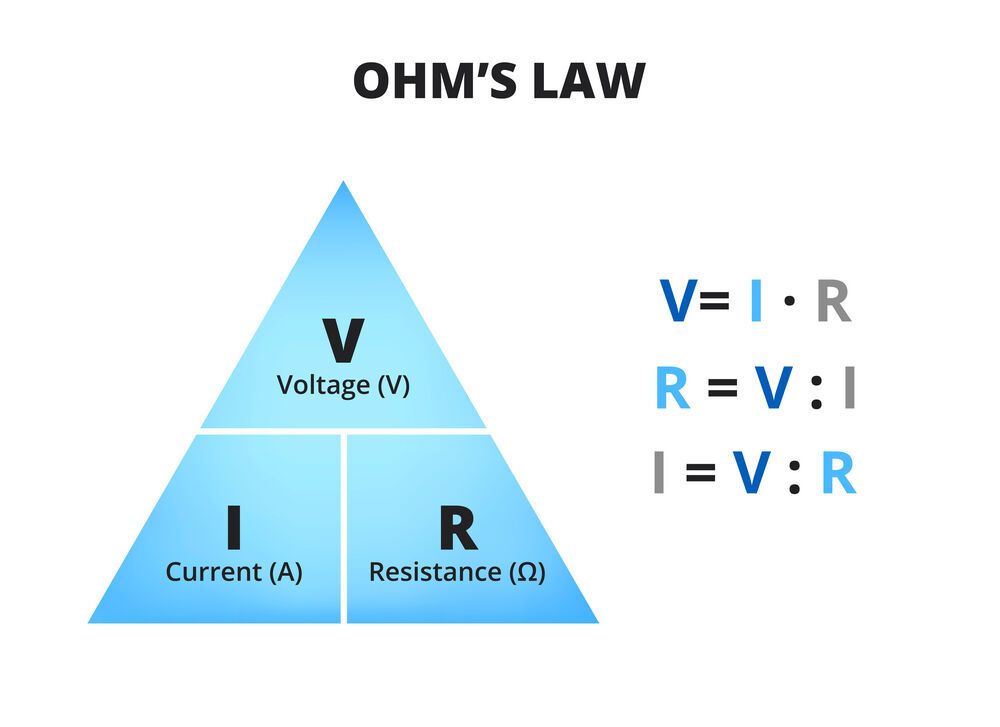

Ohm's Law describes the relationship between voltage, current, and resistance in an electrical circuit. It states that the current through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance between them.

Formula:

V = I × R

Where:

• V = Voltage (volts)
• I = Current (amps)
• R = Resistance (ohms, symbol Ω)

💡 Example:

If a circuit has a resistance of 3 ohms and a current of 2 amps:

V = 2 × 3 = 6V

That means the battery must supply 6 volts to push that current through the resistor.

⚠️ High vs. Low Resistance

• A thin wire, long wire, or poor conductor (like nichrome) has higher resistance.
• A thick wire, short wire, or good conductor (like copper) has lower resistance.

More resistance = less current
Less resistance = more current

💧 Water Analogy Recap:

• Pressure = Voltage (V)
• Water flow = Current (I)
• Narrow pipe = Resistance (R)

If the pipe gets thinner, water slows down unless you increase the pressure—just like in an electric circuit!

💡 Final Thought:

Understanding electric current helps explain everything from how a light bulb glows to how your favorite devices stay powered.
